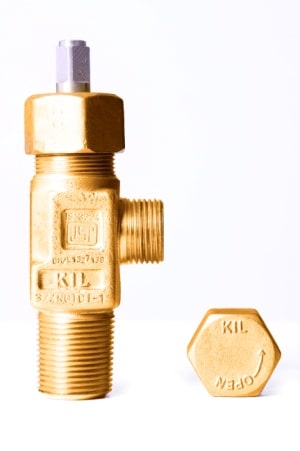

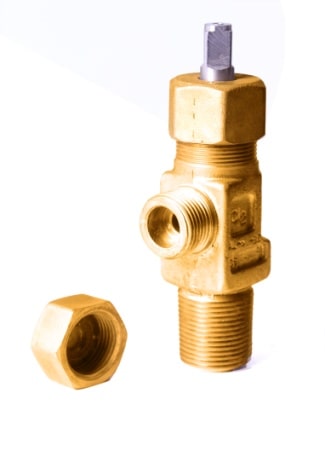

→ Simple design, robust, reliable and durable.
→ Body of aluminum silicon bronze alloy, spindle of monel metal with security nut along with Lead/Asbestos Washer.
| Code No. | Description |
|---|---|
| 51107/TY51 | Screw on type wrench operated without safety as per BSEN-849, IS:3224, BS:341 |
| As per BSEN-849/IS : 3224/BS : 341 . Inlets : As per customer's requirement | |
| 51107/TY51 | ANSI standard V-1; 3/4" NGT; 1:16 Taper |
| 51107/TY51A | ANSI standard V-1; 3/4" NGT Cl-1; 1:16 Taper |
| 51107/TY51B | ANSI standard V-1; 3/4" NGT Cl-2; 1:16 Taper |
| 51107/TY51C | ANSI standard V-1; 3/4" NGT Cl-3; 1:16 Taper |
| 51107/TY51D | ANSI standard V-1; 3/4" NGT Cl-4; 1:16 Taper |
| 51107/TY53 | DIN 477; 19.8 mm Nom; 3:25 Taper |
| 51107/TY54 | DIN 477; 28.8 mm Nom, 3:25 Taper |
| 51107/TY59 | BS:341; (1.25") 31.75 mm Nom; 1:8 Taper20 |
| 51107/TY60 | BS:341; (1") 25.4 mm Nom; 1:8 Taper |
| 51107/TY61 | BS:341; (0.715") 18.16 mm Nom; 1:8 Taper |
| Male Outlets 5/8" BSP R.H. EXT. | |
| Outlets: G 5/8" RH External, Service Pressure 35 Bar for Chlorine, 30 Bar for Refrigent Hydrogen, 165 Bar for Boron Tri Fluoride Gas. |
